STOP | End stop for lift trucks

Description

Made of a load-bearing steel structure, with high resistance and shock absorption, consisting of:
- closed ends with rectangular section
- frontal and higher strip (at a 30° angle) of a very thick ribbed sheet
- bumpers with high elastic absorption, each 500 mm long, fixed on
  the frontal strip with internal steel plates
- front fixing with very thick “L”-shaped base arranged along the
  entire length
- rear fixing with very thick double “L”-shaped plate at both ends

Technical data sheet

The protector absorbs impacts concentrated in the area of the shockproof strip higher than 30.0 kN (approx. 3000 kg) without any major deformations.

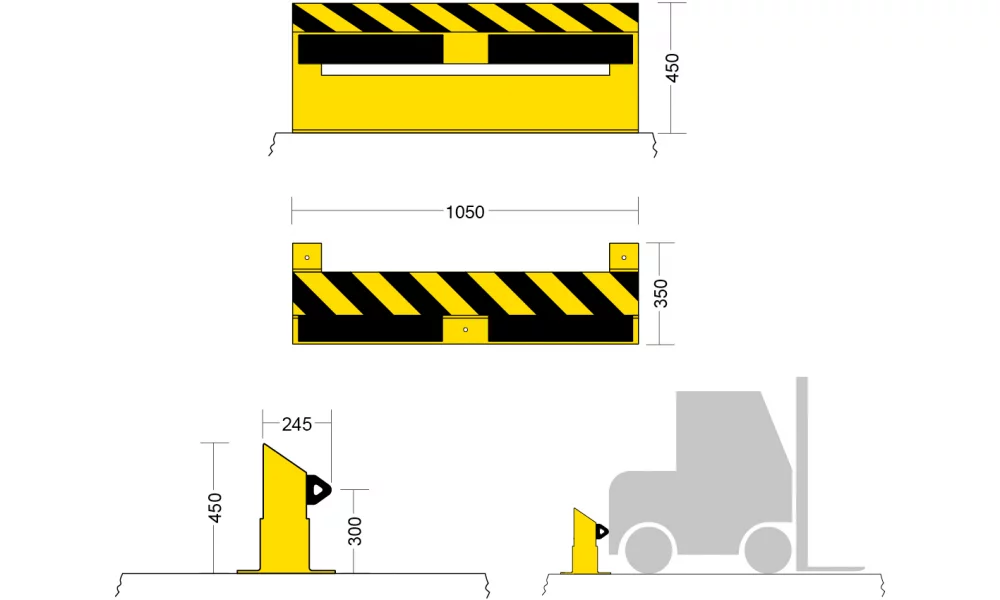

STOP 54 | W (mm): 540
STOP 120 | W (mm): 1200
