SML 300 L | Light wall protection guard
Description
Made of shaped steel, 5 mm thickness, “L”-shape with ribbing on top, in base modules of 3000 mm. The system includes 45° terminals and 90° angles.

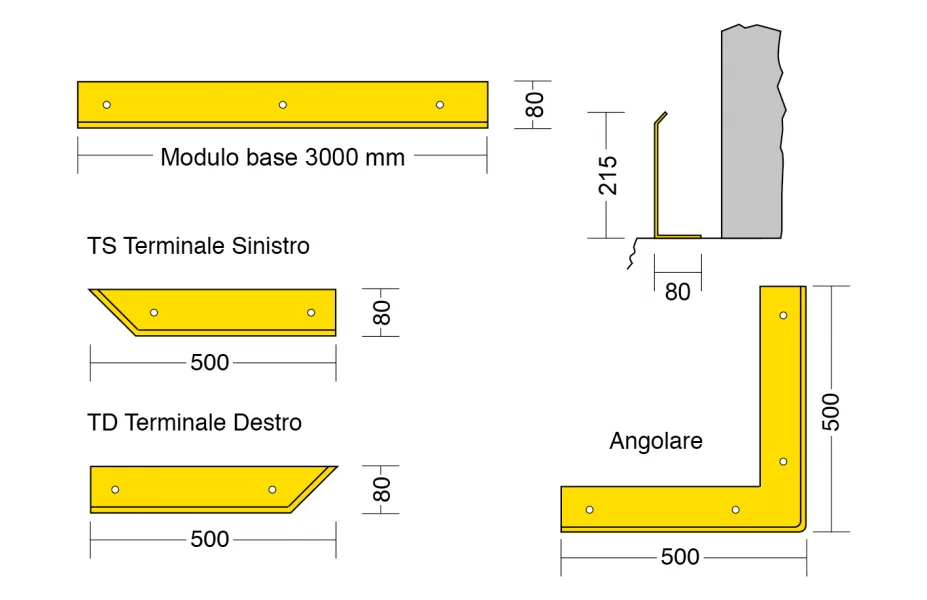

Technical data sheet
SML 300 L | W (mm): 3000 | H (mm): 215 | D (mm): 80
SML 300 L custom-made | W (mm): min. 500 max. 1990
H (mm): 215 | D (mm): 80
SML 300 L corner | W (mm): 500 x 500 | H (mm): 215 | D (mm):80
SML 300 L right terminal | W (mm): 500 | H (mm): 215 | D (mm):80
SML 300 L left terminal | W (mm): 500 | H (mm): 215 | D (mm):80

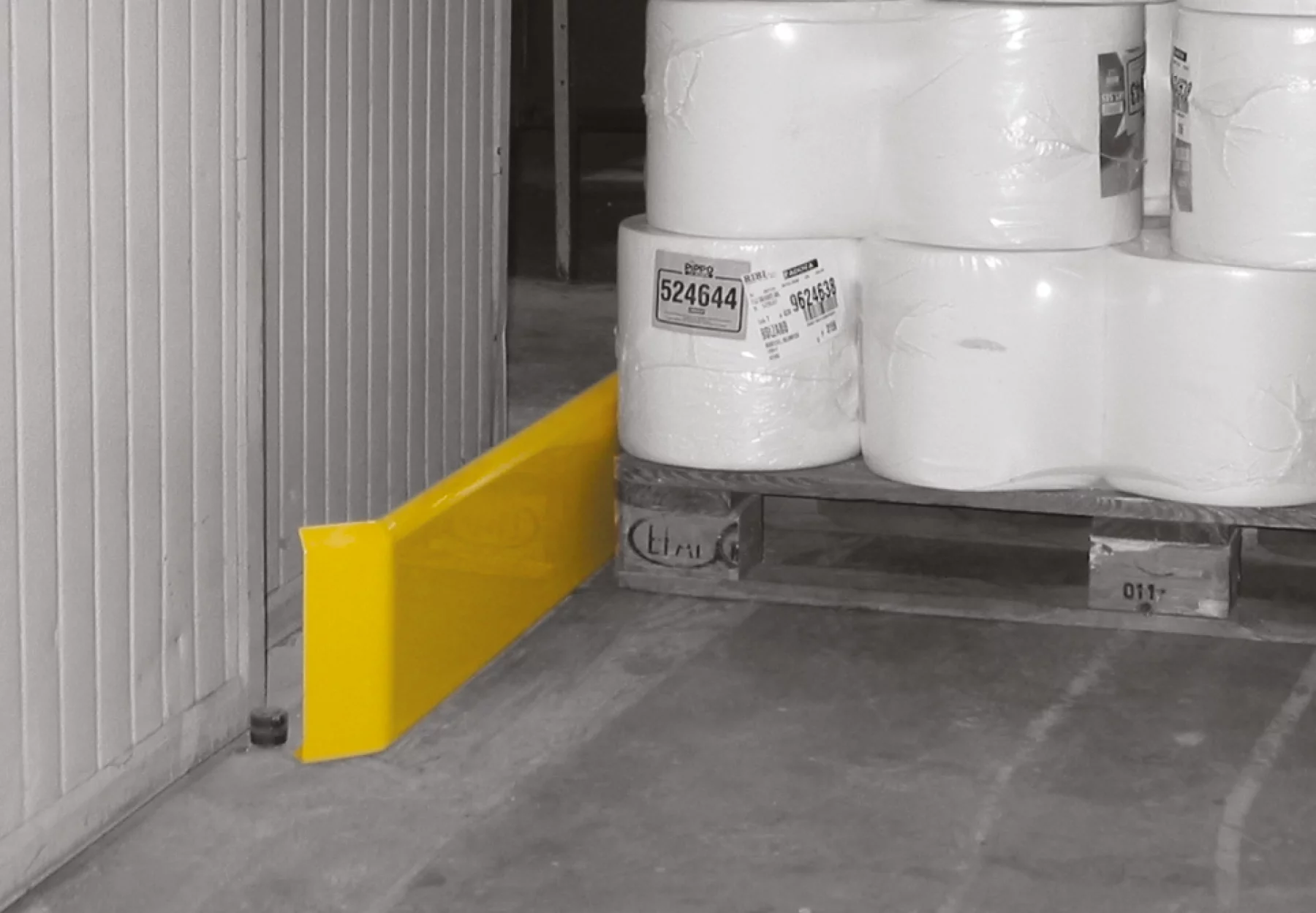

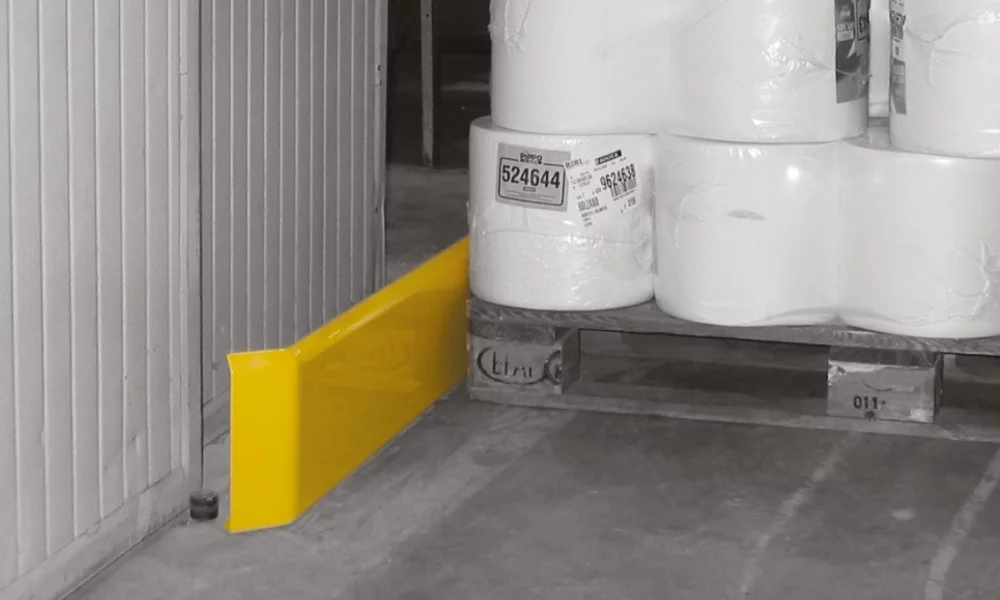

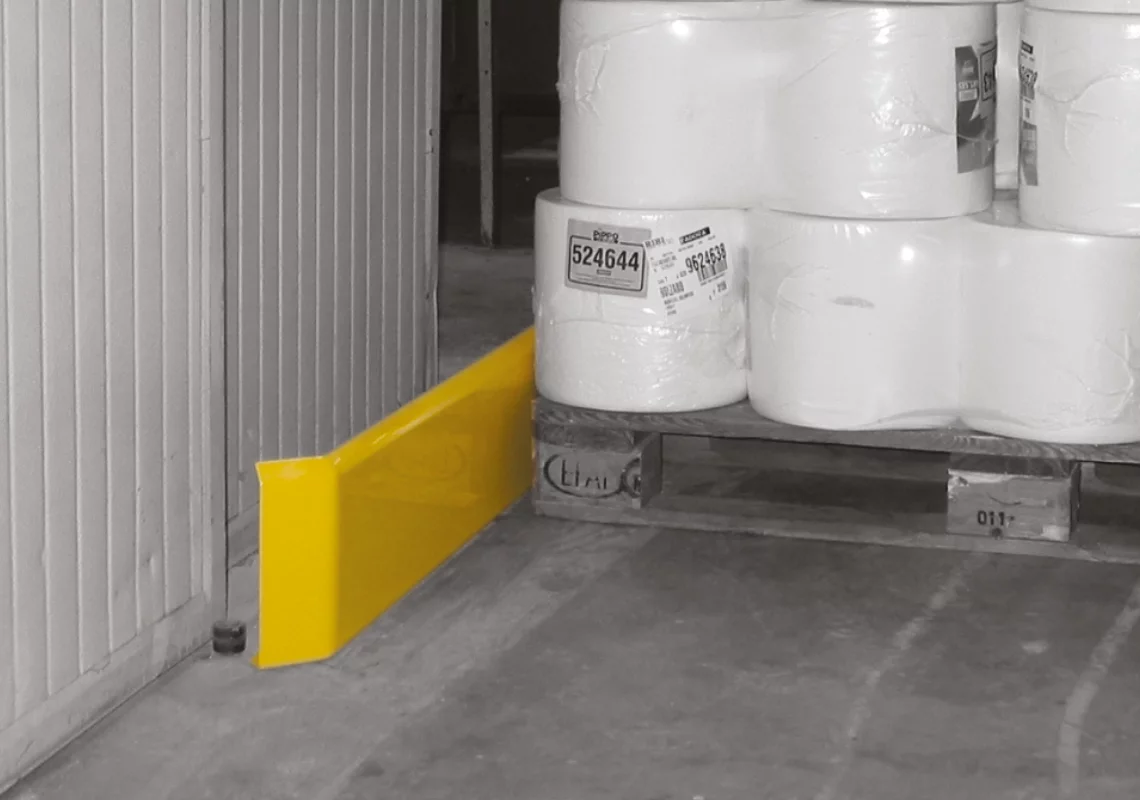

Product pictures
