P219R | P323R Post
Description
In treated corrosion-resistant steel, of cylindrical shape, with a very thick base plate. The post has a reflective element at the front.

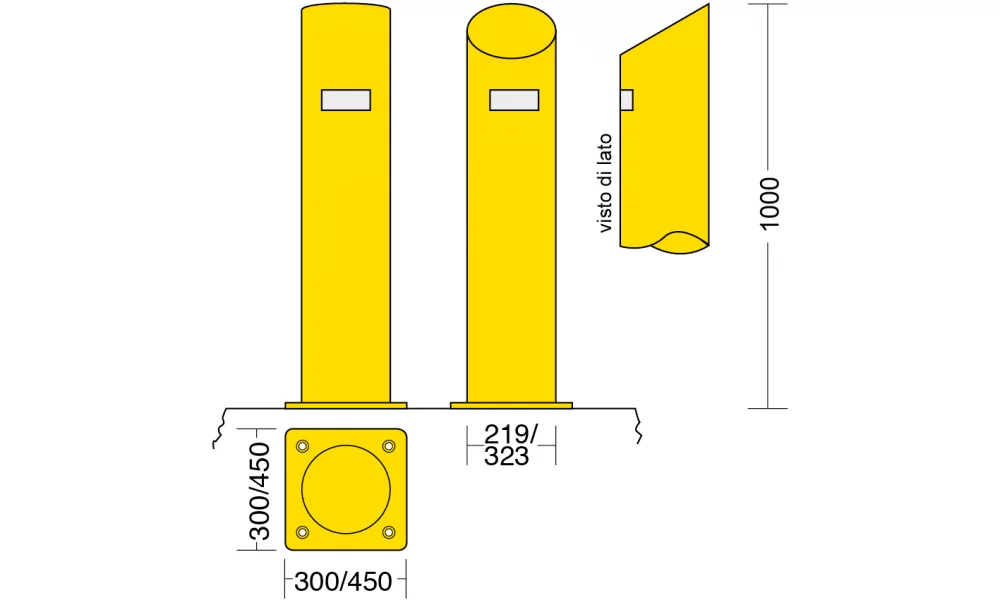

Technical data sheet
P219 R.1 | W (mm): 300 | D (mm): 219 | W (mm): 1000
Head: ELLIPSE
P219 R.2 | W (mm): 300 | D (mm): 219 | W (mm):1000
Head: ELLIPSE
P323 R.1 | W (mm): 450 | D (mm): 323 | W (mm):1000
Head: CROWN
P323 R.2 | W (mm): 450 | D (mm): 323 | W (mm):1000
Head: CROWN
FP219R - FP323R - Foundation for posts P219R - P323R
In treated corrosion-resistant steel, 15 mm-thick to be embedded in concrete.
FP219 R | W (mm): 270 | H (mm): 200
FP323 R | W (mm): 420 | H (mm): 300

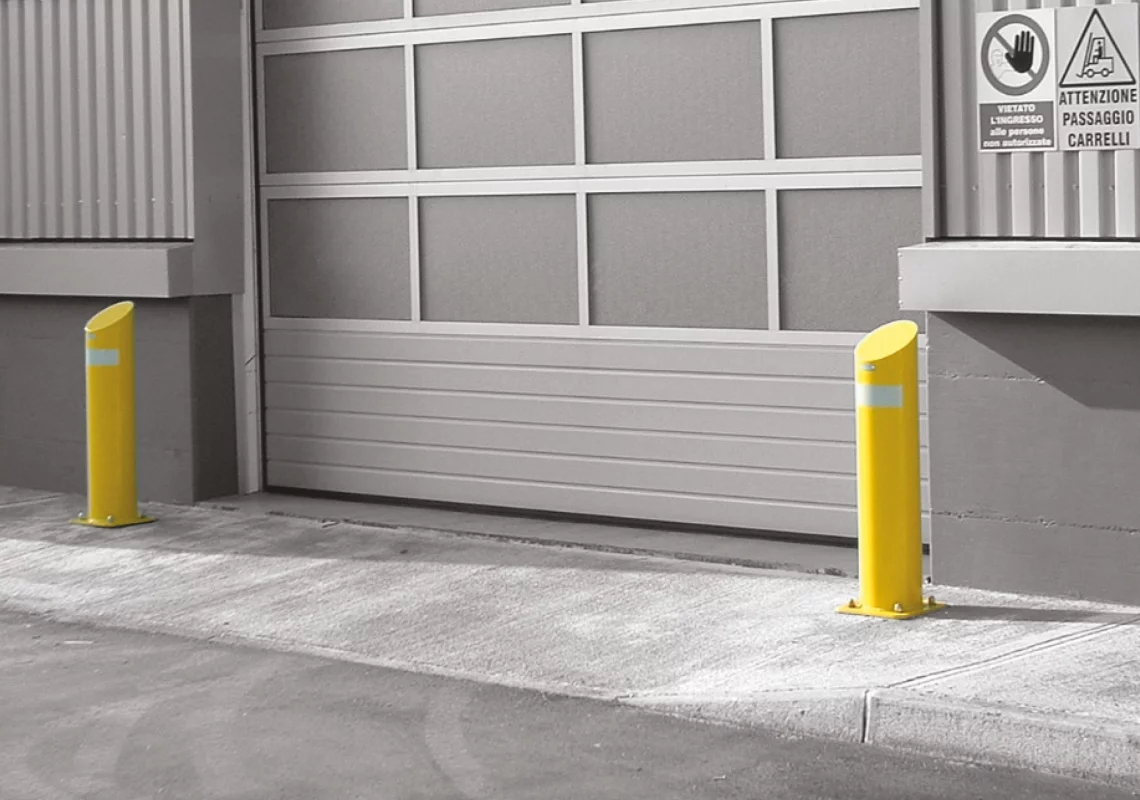

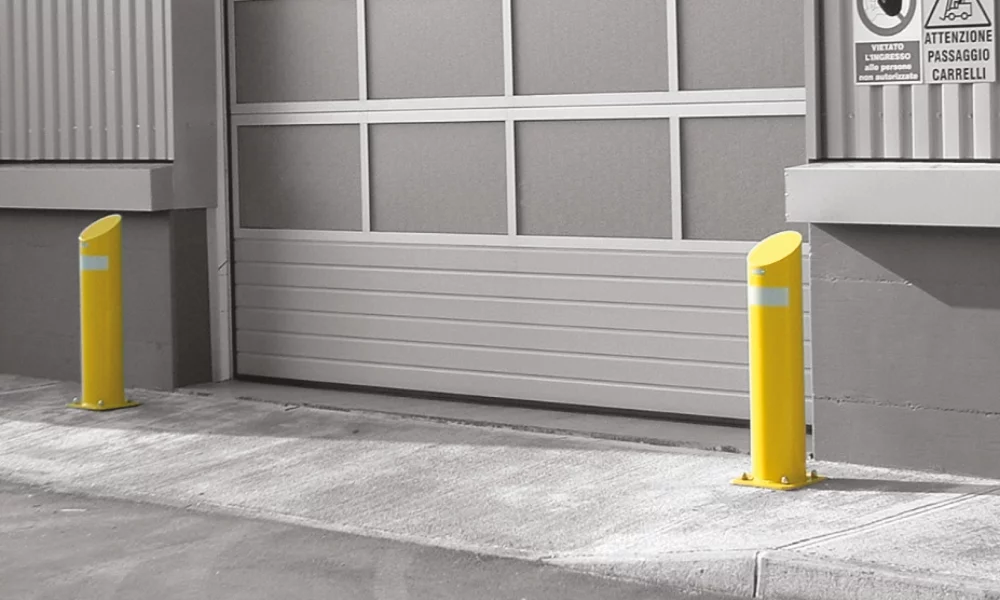

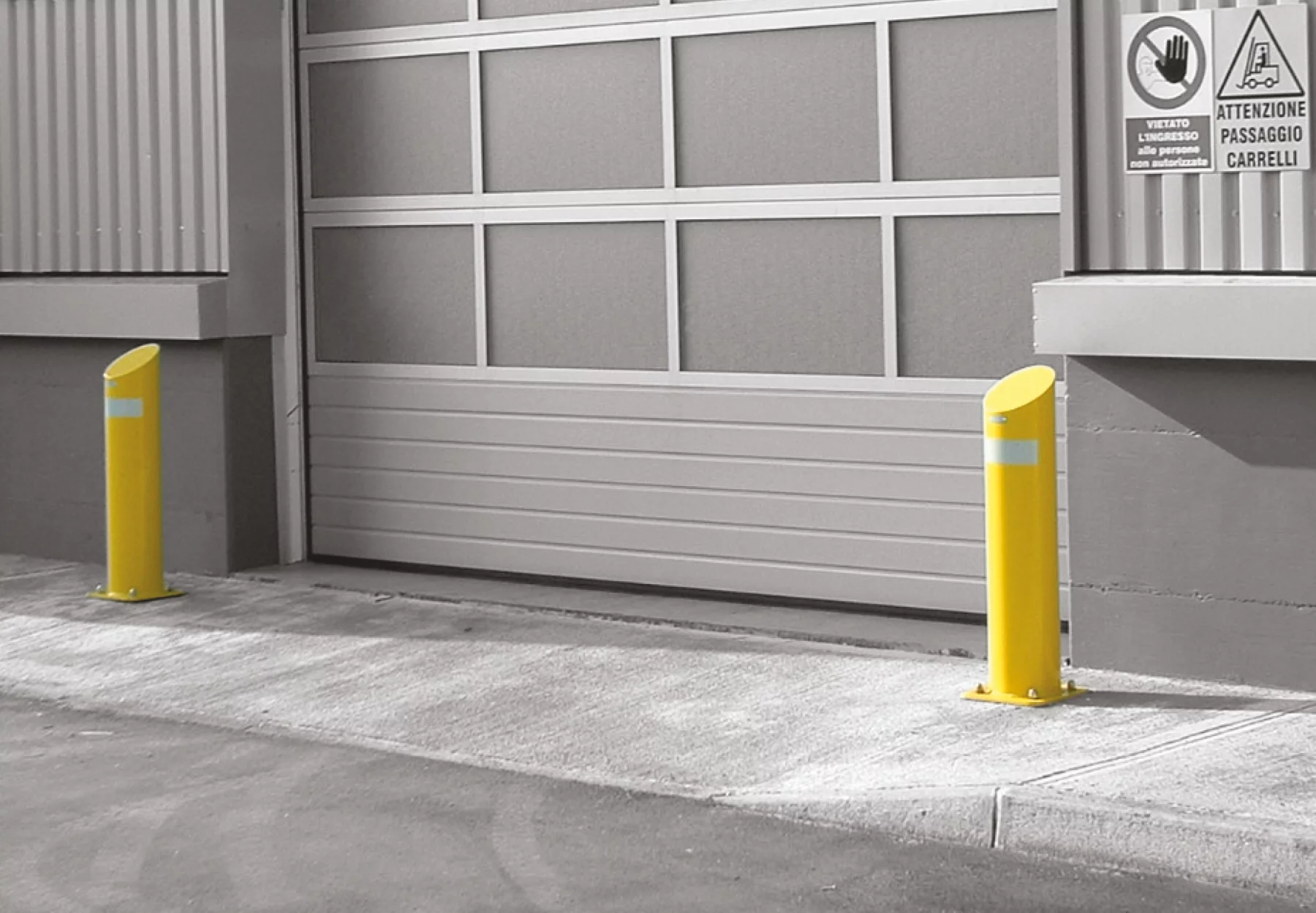

Product pictures
