SL 76 | Linear wall guard
Description
Of tubular shape ø 76 mm, with sealing caps at both ends, with 2 floor supports for the length of 1000 mm and 3 floor supports for the length of 2000 mm respectively, inclined and offset compared to the tubular body to guarantee the best shock resistance.

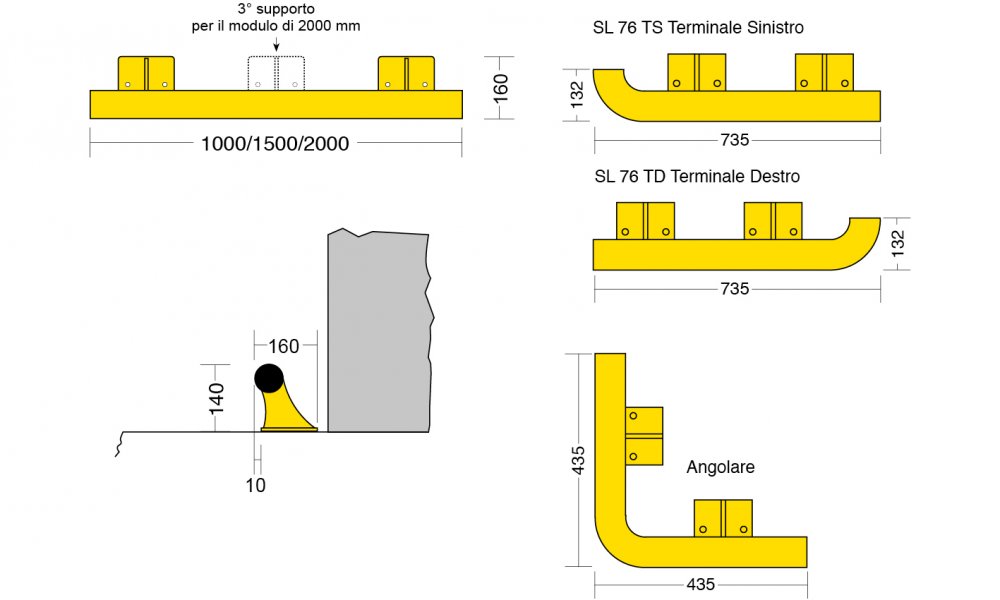

Technical data sheet
SL 76. 100
W (mm): 1000 | H (mm): 140 | D (mm): 160
SL 76.150
W (mm): 1500 | H (mm): 140 | D (mm): 160
SL 76.200
W (mm): 2000 | H (mm): 140 | D (mm): 160
SL 76 su misura
W (mm): min. 500 max. 1990 | H (mm): 140 | D (mm): 160
SL 76 angolare
W (mm): 435 x 435 | H (mm): 140 | D (mm): 160
SL 76 terminale dx
W (mm): 735 | H (mm): 140 | D (mm): 160
SL 76 terminale sx
W (mm): 735 | H (mm): 140 | D (mm): 160

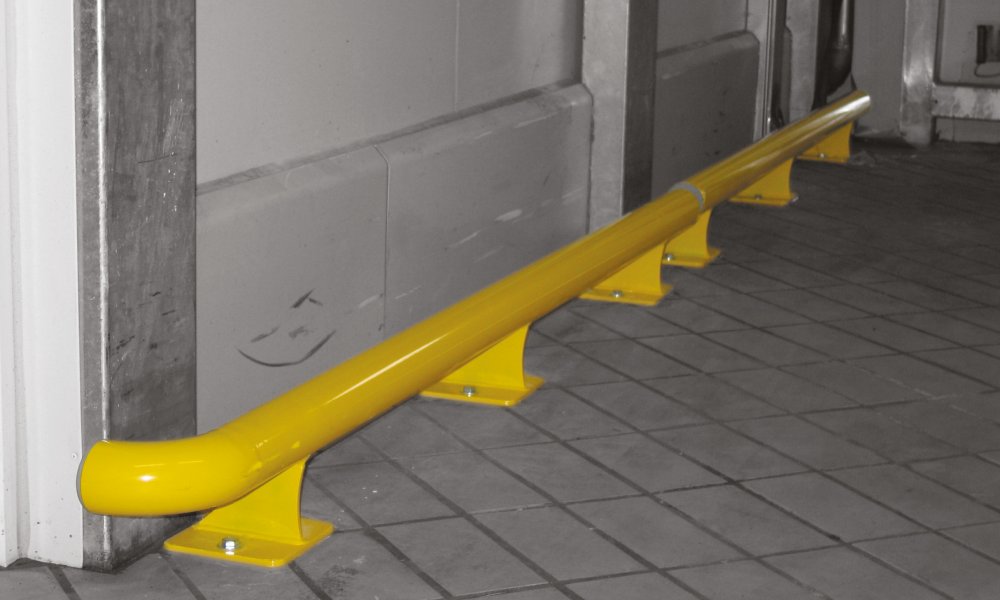

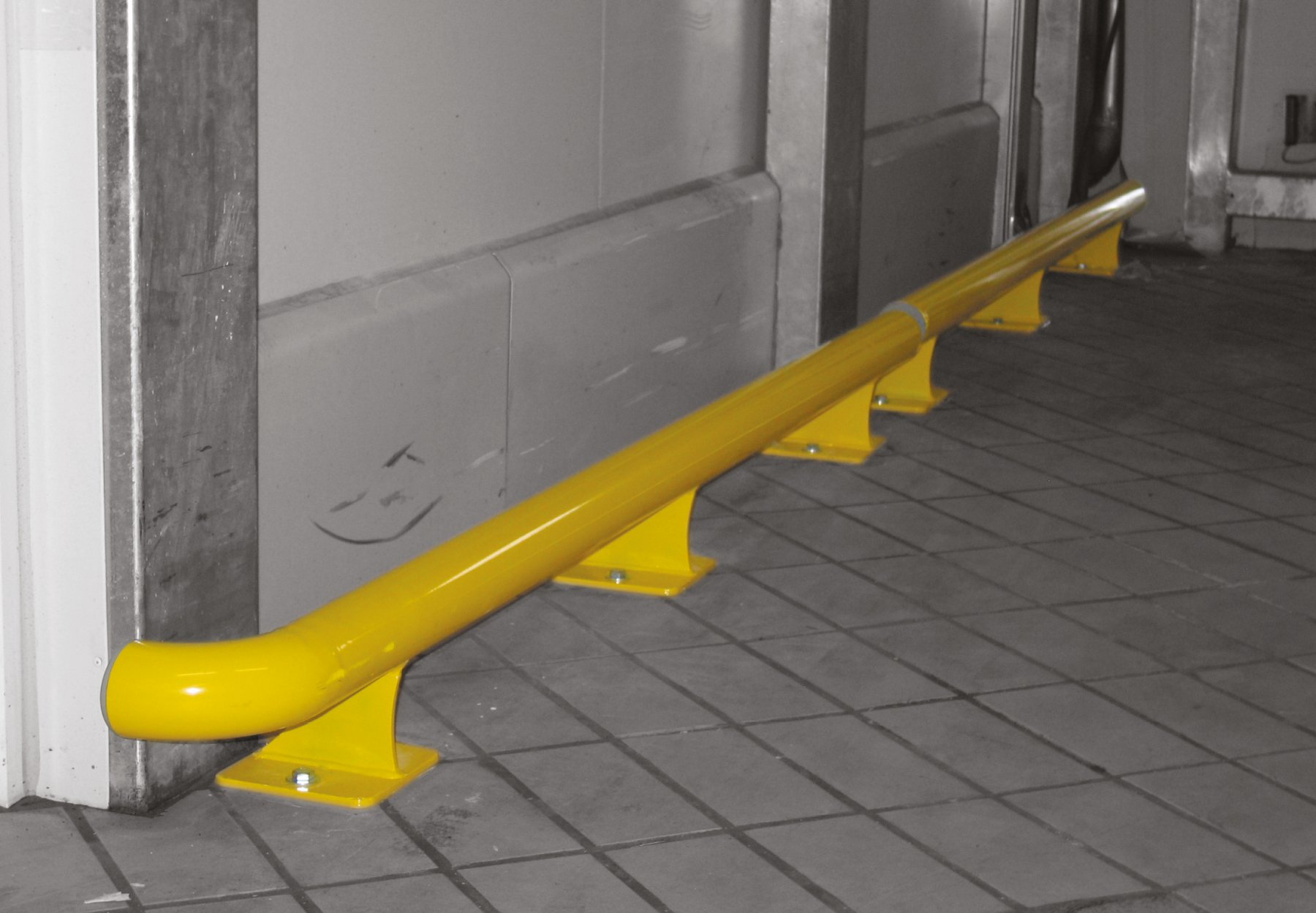

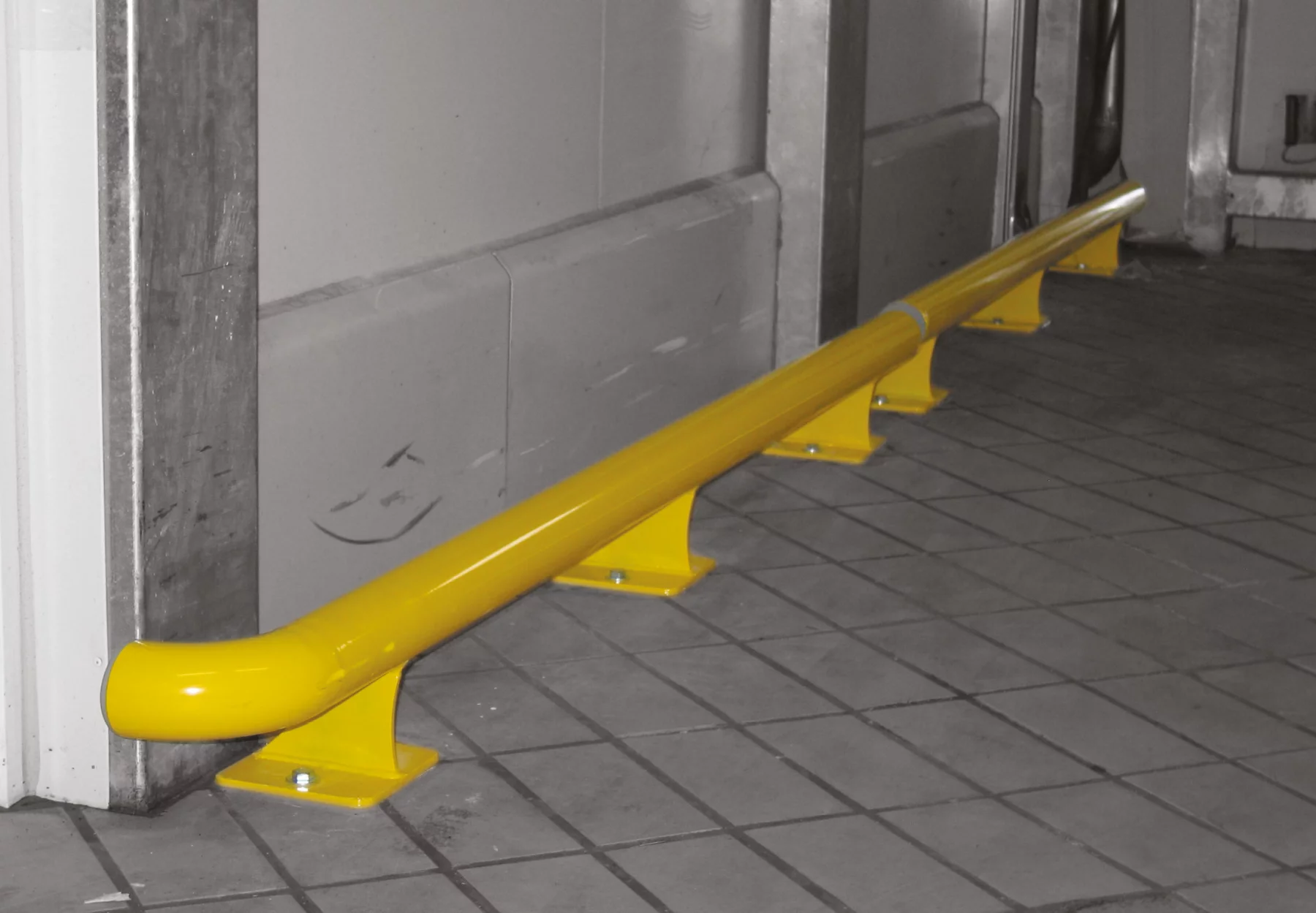

Product pictures
